5 Axis 2D X-Ray machine Unicomp UNC225 Radiography system for pipes welded seams quality testing

  • 1
  • 2
  • 3

Brand Name : UNICOMP

Model Number : UNC225

Certification : CE

Place of Origin : China (Mainland)

MOQ : 1Set

Price : can negotiate

Payment Terms : T/T,L/C

Supply Ability : 30 sets per month

Delivery Time : 30 days

Packaging Details : Wooden Case, Waterproof, Anti-collision

Dimension : 2400mm*2400mm*2442mm(L*W*H)

Weight : 5T

Tube Type : Split Tube

Voltage : 225kv

Effective dectection area : 430*430[mm]

Contact Now

UNC225 5-Axis 2D X-Ray Machine for Pipe Welded Seams Quality Testing
The UNC225 represents a heavy-duty, high-stability industrial X-ray inspection system engineered for rigorous industrial applications. This system is extensively deployed in foundries, R&D facilities, laboratories, and academic research institutions. Equipped with a high-grade digital flat-panel detector and high-dynamic radioscopic technology, it delivers ultra-sharp, high-resolution radiographic images with exceptional definition and detail fidelity.
Key Features
  • Human-centric ergonomic design optimizes operational intuitiveness and efficiency
  • Custom-configured architecture dedicated to wheel and tire inspection scenarios
  • Industry-acclaimed, robust and dependable digital X-ray inspection platform
  • Superior high-contrast imaging performance suited for both spot sampling inspection and mass serial testing
Technical Specifications
Attribute Value
Maximum Penetration (FE) 150mm/25mm
Equipment Weight 5T
System Dimension (L×W×H) 2400mm × 2400mm × 2442mm
X-ray Tube 225KV
Power 800W/1800W
Pixel Pitch 154μm
Minimum Focal Spot 0.4mm/1.0mm
Maximum Inspection Area Φ600mm × 800mm
Applications & Detection Capabilities
UNC225 assists in detection of casting flaws in various materials including:
  • Aluminum castings (engine blocks, cylinders, cylinder heads, pistons, knuckles)
  • Turbine blades
  • Wheels and tires
  • Fiber-reinforced materials
  • Ceramics
  • 3D printed materials
Inspection Images
5 Axis 2D X-Ray machine Unicomp UNC225 Radiography system for pipes welded seams quality testing

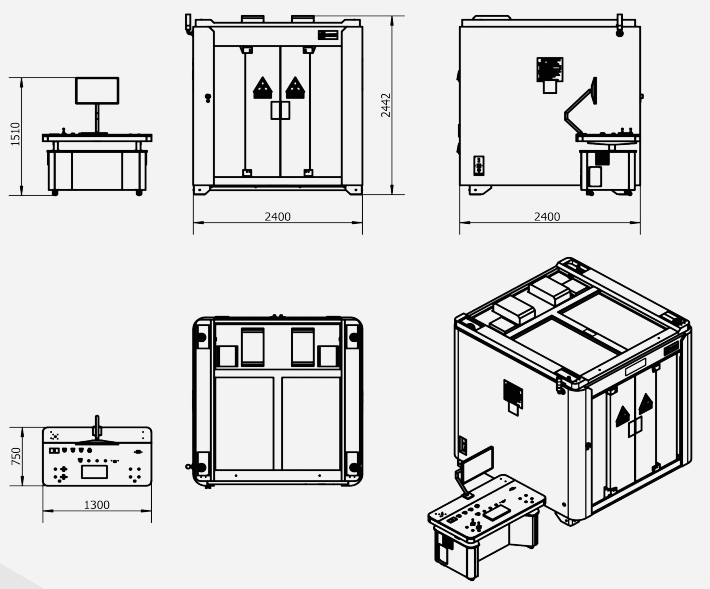

Dimensions and Appearance
5 Axis 2D X-Ray machine Unicomp UNC225 Radiography system for pipes welded seams quality testing
