Name: Auto Casting Inner Defects Recognition Fully Shield Cabinet X Ray NDT Equipment 160KV
Brand: UNICOMP
Price: 1 USD

Brand Name : UNICOMP

Model Number : UNS160-A

Certification : CE

Place of Origin : China

MOQ : 1Set

Price : can negotiate

Payment Terms : T/T, L/C

Supply Ability : 10 sets per month

Delivery Time : 30 days

Packaging Details : Wooden Case, Waterproof, Anti-collision

Contact Now

NDT UNS160 X Ray Equipment

Applications of NDT X-ray Machine UNS 160-A :

various types of metal castings
hardware products
plastic products
refractory materials
resin materials
review conduct non-destructive testing on various small and micro products such as materials

Technical Specifications of NDT X-ray Machine UNC160

System Parameters	size	1500mm1068mm1794mm
	Equipment weight	2000kg
	Power	6KW
	Package size	182015602150mm
X-ray light pipe	Light pipe type	Closed integrated tube
	tube voltage	160kv
	focus size	0.5mm
	Light tube power	480w
imaging system	detector	Amorphous silicon
	Effective imaging area	427*427[mm]
	Pixel size	139μm
	pixel matrix	3072*3072
Motion Control System	motion control mode	CNC automatic detection/manual detection
	Detection imaging method	left and right transillumination
	Stage rotation angle	±360°
	Maximum load weight	30KG
	Maximum detection range	φ400*500[mm]
	Mechanism movement speed	≥70mm/s

Features of NDT X-ray Machine UNS160:

High cost performance: Specially designed for small/micro product testing, high concentration
Perfect design, complete functions and compact structure.
High security: High level of protection, radiation dose is far lower than other countries
Standard; equipped with multiple safety protection measures.
Excellent image processing: One-click optimization processing, simple operation Fast, HD image quality.
High detection efficiency: It has a convenient and efficient control system; it has CNC automatic detection function; it has fast movement speed.

Inspection Images

Auto Casting Inner Defects Recognition Fully Shield Cabinet X Ray NDT Equipment 160KV

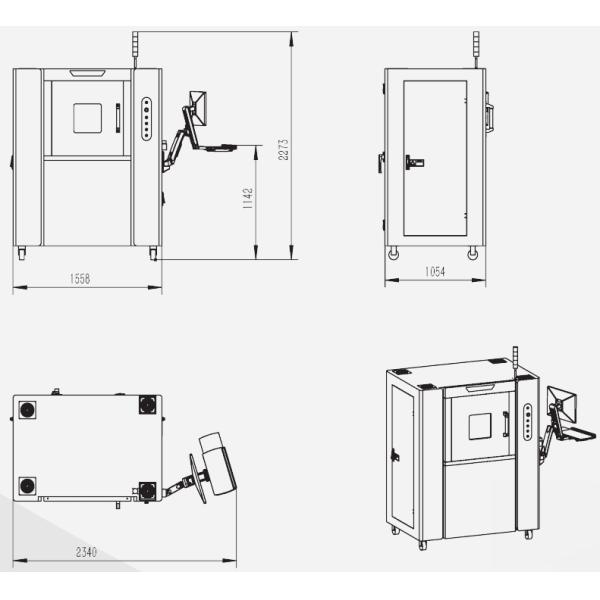

Dimensions and Appearance

Auto Casting Inner Defects Recognition Fully Shield Cabinet X Ray NDT Equipment 160KV
