High resolution digital X ray machine Unicomp UNC160 for cell housing cracks inspection

  • 1
  • 2

Payment Terms : T/T,L/C

X-ray Leakage : < 1uSv/h

Industry : Industry Nondestructive Testing

Brand Name : UNICOMP

Power Consumption : 6kW

Packaging Details : Wooden Case, Waterproof, Anti-collision

Model Number : UNC160

Weight : 3.8T

MOQ : 1Set

Delivery Time : 30 days

Size : 2400(L)x2400(W)x2442(H)mm

Price : can negotiate

Application : Aluminum Casting, Iron Casting, Auto Parts, Wheels, Metal Products, Refractory Materials

Supply Ability : 10 sets per month

Name : NDT Machine

Certification : CE

Tube Voltage : 160KV

Place of Origin : China

Contact Now

High Resolution Digital X-Ray Machine UNC160
Advanced industrial X-ray inspection system designed for comprehensive quality control of die casting parts and various industrial components, specializing in casting parts cracks and porosity testing.
Applications
  • Cast parts and pressure vessels
  • Epoxy resin defect detection
  • Wheels, tires and metal parts
  • Steel pipes, cylinders and wood materials
System Specifications
ParameterSpecification
Dimensions2400mm × 2400mm × 2442mm (L×W×H)
Equipment Weight3.8 Tons
Power Consumption6 KW
Maximum Penetration (AL/FE)110mm / 20mm
Detection RangeΦ600 × 800mm
Load Capacity100kg
Work Environment5-40°C ≤80% Humidity
Installation PowerThree-phase five wire system AC380V
X-ray Leakage Dose Rate≤1μSv/h
X-ray Generator
ParameterSpecification
Tube Voltage160kV
Power480W
Focal Size0.5mm
Detector System
ParameterSpecification
Image Area145mm × 145mm
Pixel Matrix3072 × 3072
Pixel Size139μm
Software Functions
Image Processing
Brightness and contrast adjustment; frame stacking; window width and level adjustment; image enhancement, filtering, sharpening, invert, and bubble measurement; move, zoom in, zoom out; display image scaling; coordinate and gray value display.
Image Measurement
Distance, radius, polygon, angle measurement; arrows and text labels; save processed images.
Motion Control
Speed adjustment for each moving axis; CNC programming; manual operation.
Additional Functions
  • Save detection time via CNC programmable control
  • No dead angle detection with C-arm five-axis motion mechanism
  • Servo stepper motor drive for operational stability
  • Complete protective functions including voltage regulation, isolation, filtering, and grounding
  • Industrial cloud interface for real-time data upload with traceability and big data analysis (optional)
Key Features
  • Strong penetration capability with high reliability and long service life
  • Multi-functional workstation with 360° rotation and shift capabilities
  • High automation level with fast detection speed
  • User-friendly software interface with customizable function development
  • High definition resolution FPD detector
Inspection Images
High resolution digital X ray machine Unicomp UNC160 for cell housing cracks inspection

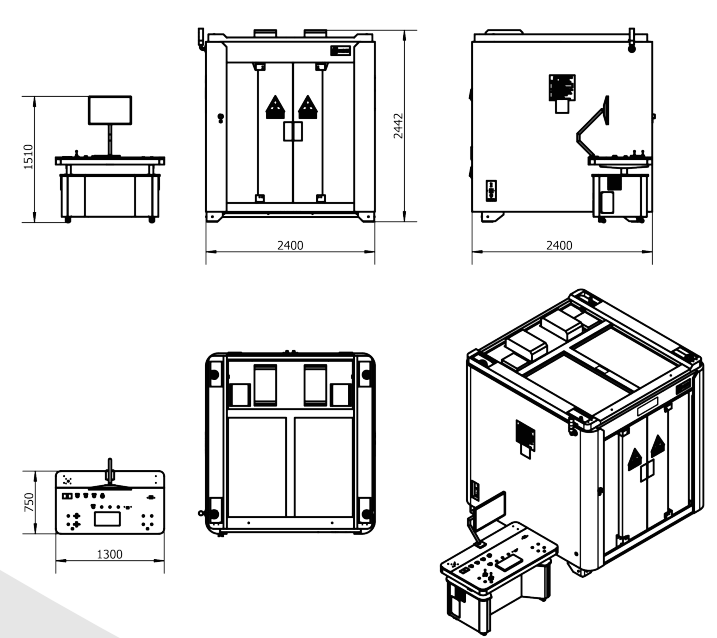

Dimensions and Appearance
High resolution digital X ray machine Unicomp UNC160 for cell housing cracks inspection
