High Resolution Defect Detection Reliable IC Internal Inspection PCBA IC X-ray AX9600 Unicomp

Name: High Resolution Defect Detection Reliable IC Internal Inspection PCBA IC Xray AX9600 Unicomp
Brand: UNICOMP
Price: 1 USD

Quality High Resolution Defect Detection Reliable IC Internal Inspection PCBA IC X-ray AX9600 Unicomp for sale

Brand Name : UNICOMP

Model Number : AX9600

Certification : CE

Place of Origin : China

MOQ : 1Set

Price : can negotiate

Payment Terms : T/T,L/C

Supply Ability : 10 sets per month

Delivery Time : 30 days

Packaging Details : Wooden Case, Waterproof, Anti-collision

Dimension : 1655x2100x1880mm

Weight : 4590kg

Tube Type : Open Type

System Magnification : 3400KG

Voltage : 160kV

Max.Power : 64W

Contact Now

High Resolution Defect Detection Reliable IC Internal Inspection PCBA IC X-ray AX9600 Unicomp

Equipped with UNICOMP’s independently developed 160kV high-power open micro-focus X-ray tube, the AX9600 achieves an ultra-fine focal spot of 0.8μm.

Combined with 2000× ultra-high optical magnification and superior X-ray penetration performance, it enables high-accuracy void fraction testing for TVS diodes.

It is specially optimized for high-precision non-destructive inspection of advanced IC packaging, HBM high-bandwidth memory and GPU semiconductor core components.

Specifications:

System Summary	Dimensions	1655mm(L)×2100mm(W)×1880mm(H)
	Weight	4590kg
	Power Supply	220V±10% 50Hz/60Hz 9A
	Power Consumption	2kw
X-ray Tube	Tube Type	Open Type
	Voltage	160kv
	Max.Power	64W
	Focus Spot Size	1µm
Imaging System	X-ray Detector	FPD
	Pixel Size	84µm
	Detection Area	129*129mm
	Pixel Matrix	1536*1536[pixel]
	Frame Rates	Max30fps
	System Magnification	34000X
Motion control system	Max. Payload size	520*520[mm]
	Max.Detection size	520*520[mm]
	X/Y/Z-Axis Travel Distance(mm)	550/710/265[mm]
	Tilt and Rotation	Detect XY±70° Tilt
Industrial PC	Motion Control Mode	34"HD 4K curved display
	Max.Payload Size	Windows 11 64-bit
	Max.Detection Size	4TB HDD+512G SSD
	X/Y/Z-axis travel distance(mm)	32G
	Tilt and Rotation	i5 12 generation
Other	Door Open	Automatic Door
Other	X-Ray Safety	＜1µSv/h

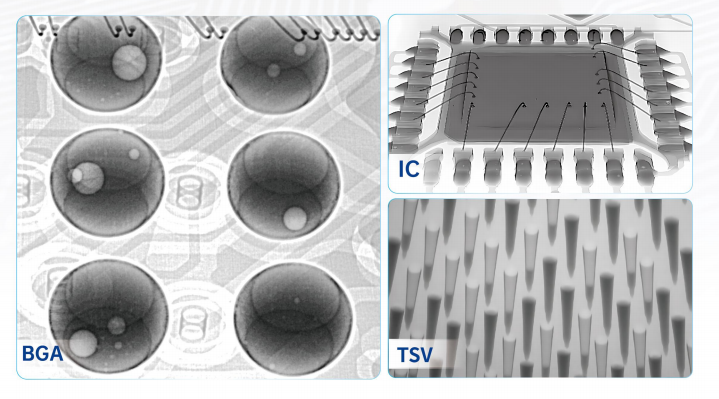

Inspection Images:

High Resolution Defect Detection Reliable IC Internal Inspection PCBA IC X-ray AX9600 Unicomp

Dimensions and Appearance:

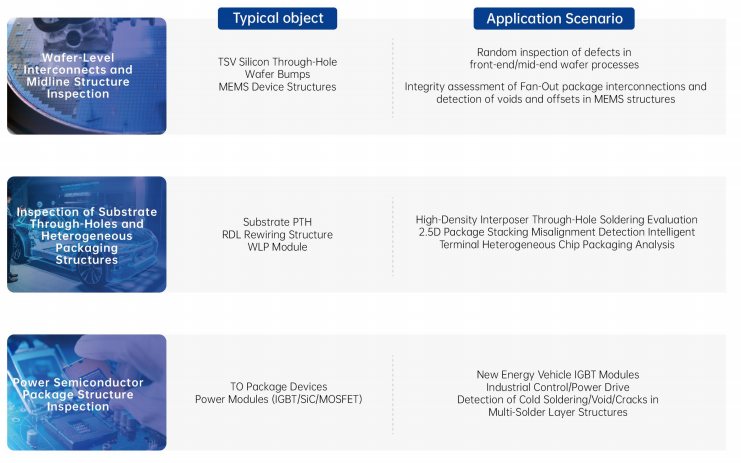

Application Areas:
