Unicomp Self-developed Software with Anti-interference Counting Algorithm CX7000L Chip Counter
Technical Data of CX7000L
| Equipment Features |
Footprint (W*D*H) / Machine Weight |
870 mm*1410 mm*1960 mm / 740 kg |
| Package |
Plywood Case, 1050 cm*1650 cm*2200 cm, Total 920 kg |
| Power Consumption |
700W |
| Power Supply |
220V ±10% 50Hz/60Hz 3A |
| System Computer |
Operating System |
Industrial PC, Windows11 |
| RAM CPU Model |
16G/I5 8 generation |
| Monitor |
27” FHD LCD Display |
| X-Ray Tube |
Max. Voltage |
80 kV |
| Tube Type |
Sealed |
| Max. Current |
1mA |
| Focal Spot Size |
0.03 mm |
| Detector |
FPD Detector Pixel Size |
140 μm |
| Effective Detection Area |
430*430 mm |
| Pixel Matrix |
3072*3072 |
| Frame Rates / AD Bits |
2fps / 16 Bit |
| Detection Parameters |
Inspection Tape & Real Size |
7”~17” |
| Scan height |
≤80mm |
| Maximum Inspection Speed |
7”~17” Tape & Real is less than 10s/Real, 7”*4 is less than 10s. |
| Inspection Min. Component |
01005 |
| Inspection Accuracy |
≥99.99% |

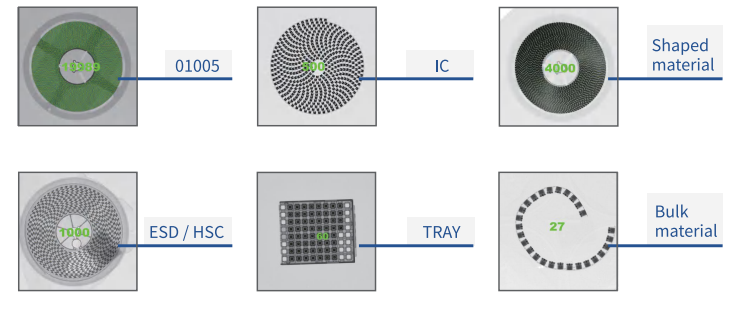

| Detectable item |
Capacitors, resistors, inductors, beads, crystals, transistors, diodes, FETs, various types of resistors, bile capacitors, detectable connectors, integrated circuit chips, etc. |
| Accessories |
Barcode Scanning, Printer, Fingerprint Recognition System
|
Main Configuration of Chip Counter CX7000L
1. Bar-code Scanner
2. X-ray System
3. Label Printer
4. Finger Printer Recognition System

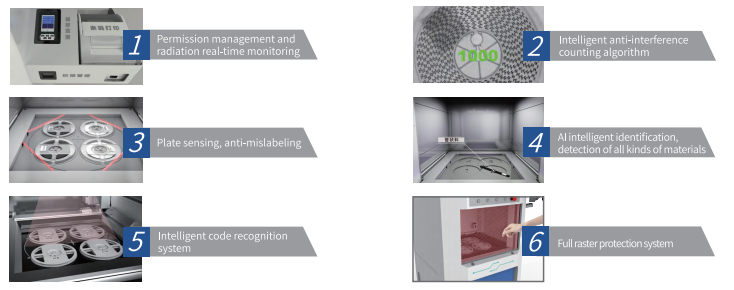

Features of CX7000L
● Automatic inspection, no need on programs switch for different components
● Fast speed and high accurate chip counting, reducing labor costs
● No chip damage or lost with non-destructive counting
● Compatible with 7”~17” tape & reels
● Automatic link with ERP & MES System, and storage system
● Shielded cabinet protection to guarantee Safety leakage of X-ray
● Fast counting Speed:12~13s/Reel
● Inspection Accuracy: ≥99.9%
● Min. Package: 01005
● One-button operation, automatic counting
● Hand-operated label reading, new label printing and sticking
● Special advantage for incoming inspection and inventory management
● Real-time radiation leakage monitoring
Our Services
Help customer analyze product project and provide detection solution.
Freely sample detection test.
Provide professional detection solution.
Skilled jig design services.
Provide shipping/delivery information checking service.
One year guarantee, all life maintain promise.
24 hours feedback speed by email of others.
FAQ:
1. How about the package? Is it safe during the delivery?
All X-ray inspection machine is packed by standard strong wooden carton.It is safe when shipping.
2. Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
3. If we come to your factory, if you will provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
