Multi-function DR CT Dual Imaging Industrial X-ray CT UNCT3500 Unicomp Non-Destructive Testing
Detection purpose:
Adaptable to a wide range of sizes and materials, this system meets the diverse industrial CT application requirements of various sectors. It is primarily utilized for the precision inspection of medium-to-large-scale products, including metal castings and non-ferrous metals, lithium-ion new energy battery modules, non-metallic workpieces, and composite materials.
Features:
● Strong penetration,high reliable,low breakdown, long life;
● High definition,resolution FPD;
● Multi-functional workstation,360°rotation and shift;
● High automation,fast detection speed;
● User friendly software design for interfacing and to facilitate,customize software function development requirement.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Freely provide project designing, process designing, choosing suitable equipment for you.
After-Sales Service
* The quality guarantee period of our machine is 12 months.
* Within the quality guarantee period, free parts replacement and corresponding service are available.
| System Parameters |
Dimensions |
5608*2508*3167mm |
| Equipment weight |
35000kg |
| Power |
15KW |
| Detection range |
Φ600*800mm |
| X-ray leakage dose rate |
≤1uSv/h |
| X-ray Generator |
Tube voltage |
225kV,450KV |
| X-ray tube type |
Open tube |
| Power |
500W,1500W |
| Focal size |
＜4μm0.4/1mm |
| Detector |
Image area |
145mm x 145mm |
| Resolution |
3.0LP/mm |
| Detector ( Selection FPD ) |
Effective Imaging Area
|
427*427mm,614mm |
| Pixel matrix |
3072mm*3072mm,44cm/s |
| Pixel size |
139μm,0.2mm |
Function Application

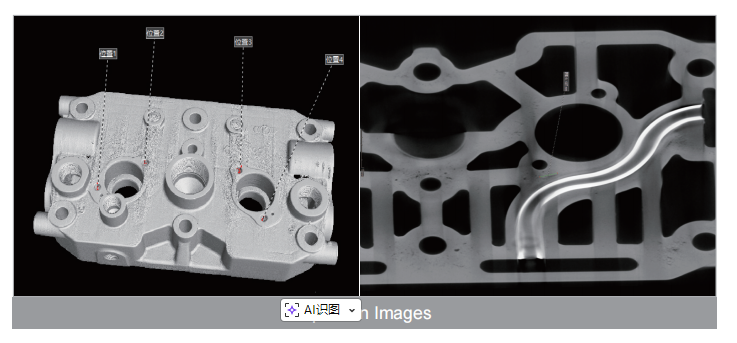

Inspection Images

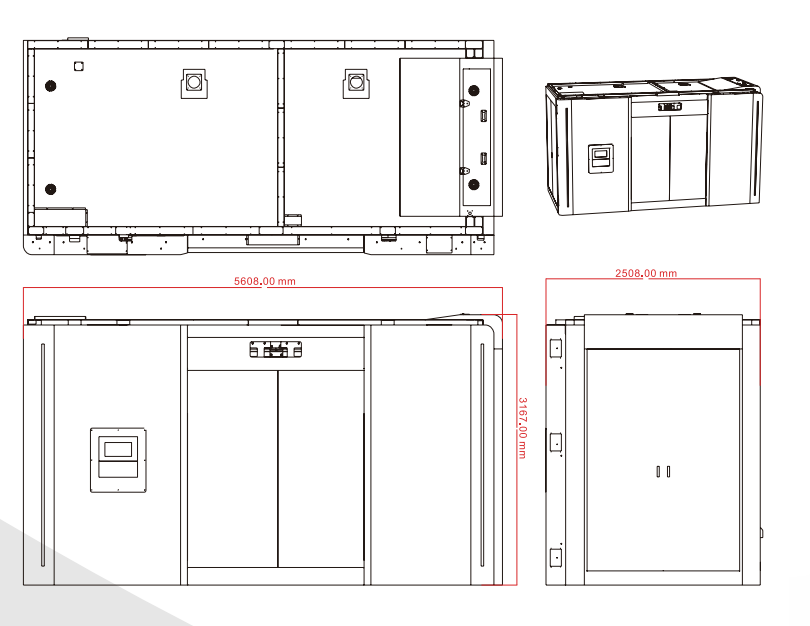

Dimensions and Appearance
