The Most Economic X-Ray inspection machine AX7900 with high performance
Description of IC X Ray machine AX7900:
This machine integrates a 90kV micro-focus X-ray tube with 5μm focal spot and high-quality FPD digital flat detector. Standard precise XY multi-axis motion is configured, along with optional ±60° angular tilting detection.
The synchronized Z-axis adjustment of X-ray source and detector smoothly regulates imaging magnification and field of view. Featuring quick sample target alignment and powerful DXI image processing algorithm, it realizes programmable XY sequential inspection for diversified defect detection tasks.
It supports maximum loading dimension 420×420mm, effective inspection range 380×380mm, and stable system magnification around 300X.
APPLICATION of IC Xray machine AX7900:
- LED, SMT, BGA, CSP, Flip Chip Inspection.
- Semiconductor, Packaging components, Battery Industry.
- Electronic components, Auto parts, Photovoltaic Industry.
- Aluminum Die Casting, Moulding Plastic.
- Ceramics, Other Special Industries
FEATURES of IC Xray machine AX7900:
- 90KV 5μm X-ray tube, FPD Detector.
- Multi-function workstation, X-Y multi-axis movement. ±60° "Arc" motion(Option).
- Motion controls include X/Y table motion plus Z-axis tube and detector movement, ±60° tilt motion (option).
- Multi-function DXI image processing system.
- X/Y programming function for multiple image inspection routines
- Max. loading area 420mm x 420mm, max. detection area 380 x 380mm, with ~300X System Magnification.
- BGA void/area auto-measurement plus report generation.
Technical Specifications of AX7900
| Item |
Definition |
Specs |
| System Parameters |
Size |
1200(W)x1285(D)x1700(H)mm |
| Weight |
1235kg |
| Power |
220V±10%,50Hz/60Hz 4A |
| Power Consumption |
0.8kW |
| X-ray Tube |
Type |
Closed |
| Max.Voltage |
90kV |
| Max.Power |
8W |
| Spot Size |
5μm |
| X-ray System |
Intensifier |
FPD |
| Monitor |
24 ‘’HD |
| Hard Disk |
1TB HDD |
| System OS |
Windows 11 64-bit |
| Detection Region |
Max.Loading Size |
600mm x 520mm |
| Max.Inspection Area |
505mm x 440mm |
| X-ray Leakage |
<1μSv/h |
Inspection Images of IC X Ray machine AX7900:

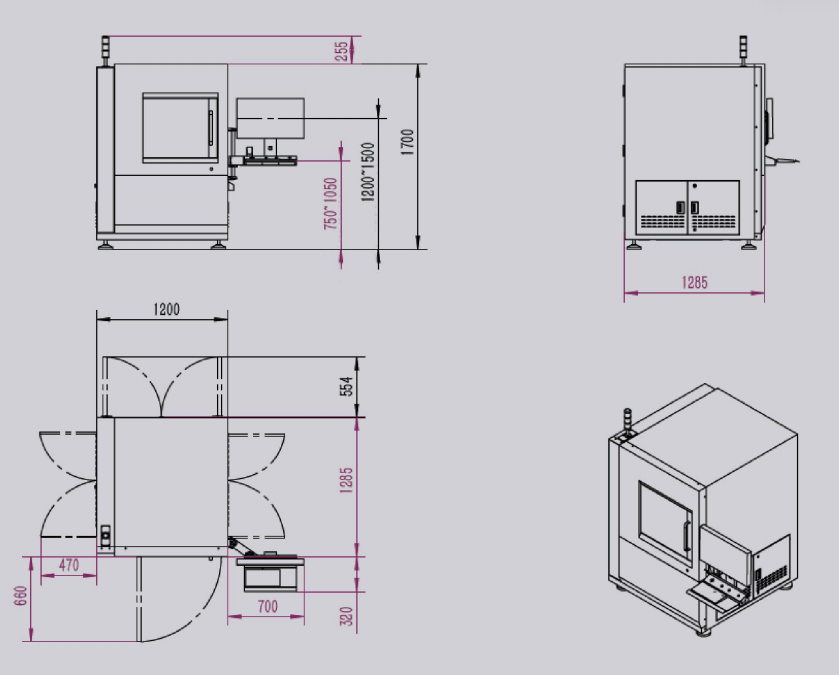

Dimensions and Appearance:
