Deep Penetration Imaging Internal Porosity Defect Checking Die casting X-ray AX9600 Unicomp

  • 1
  • 2
  • 3

Brand Name : Unicomp

Model Number : AX9600

Certification : CE, FDA

Place of Origin : China

MOQ : 1 set

Price : can negotiate

Payment Terms : T/T,L/C

Supply Ability : 30 sets per month

Delivery Time : 30-35 days after order confirmation

Packaging Details : Wooden Case, Waterproof, Anti-collision

Dimensions : 1690mm(L)×2116mm(W)×1880mm(H)

Tube Type : Open Type

Machine Weight : 4590KG

Voltage : 160kv

Power Supply : 220V±10% 50Hz/60Hz

Contact Now

Deep Penetration Imaging Internal Porosity Defect Checking Die Casting X-ray AX9600 Unicomp
The UNICOMP AX9600 high-power micro-focus X-ray inspection system delivers ultra-precision non-destructive testing for advanced semiconductor and electronic components, featuring deep penetration imaging for internal porosity and defect detection in die casting applications.
Applications
Specifically designed for high-end semiconductor and electronic component inspection, the AX9600 system provides comprehensive quality control solutions across multiple industries.
  • Void ratio measurement of TVS diodes and internal defect detection in advanced IC packaging
  • Inspection of HBM high-bandwidth memory chips, GPU modules, and high-density electronic assemblies
  • Quality control for automotive electronics, power semiconductors, and aerospace electronic devices
  • Precision analysis of micro-voids, solder joint defects, internal cracks, and assembly anomalies
  • R&D verification and mass-production quality control for semiconductor manufacturing
Technical Specifications
System Summary Specifications
Dimensions 1690mm(L) × 2116mm(W) × 1880mm(H)
Weight 4590kg
Power Supply 220V±10% 50Hz/60Hz 9A
Power Consumption 2kW
X-ray Tube
Tube Type Open Type
Voltage 160kV
Max. Power 64W
Focus Spot Size 1µm
Imaging System
X-ray Detector FPD
Pixel Size 84µm
Detection Area 129×129mm
Pixel Matrix 1536×1536[pixel]
Frame Rates Max 30fps
System Magnification 34000X
Motion Control System
Max. Payload Size 520×520[mm]
Max. Detection Size 520×520[mm]
X/Y/Z-Axis Travel Distance 550/710/265[mm]
Tilt and Rotation Detect XY±70° Tilt
Industrial PC
Motion Control Mode 34"HD 4K curved display
Operating System Windows 11 64-bit
Storage 4TB HDD + 512G SSD
Memory 32G
Processor i5 12th generation
Other Features
Door Operation Automatic Door
X-Ray Safety <1µSv/h
Functional Characteristics
Deep Penetration Imaging Internal Porosity Defect Checking Die casting X-ray AX9600 Unicomp

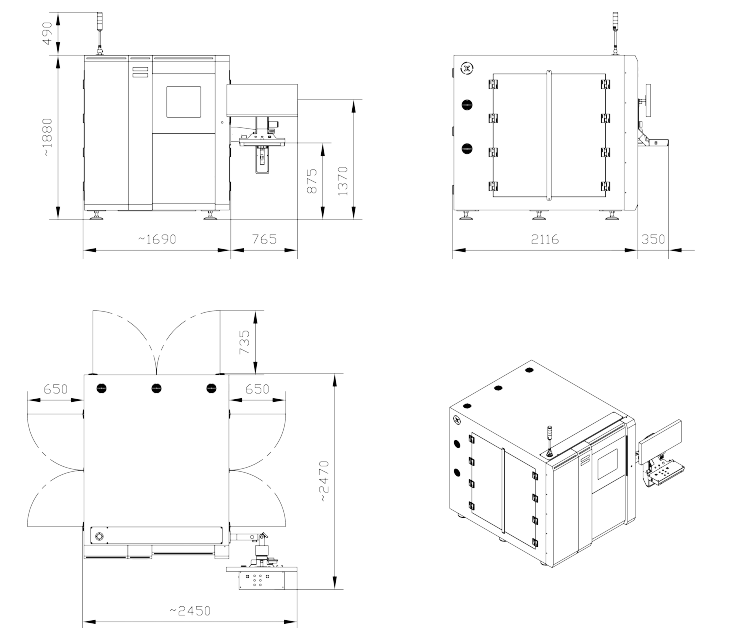

Dimensions and Appearance
Deep Penetration Imaging Internal Porosity Defect Checking Die casting X-ray AX9600 Unicomp
Inspection Images
Deep Penetration Imaging Internal Porosity Defect Checking Die casting X-ray AX9600 Unicomp
