High-Precision 2.5D/3D X-ray Inspection for BGA & PCBA Defect Detection UNICOMP AX8300

Name: HighPrecision 25D3D Xray Inspection for BGA amp PCBA Defect Detection UNICOMP AX8300
Brand: UNICOMP
Price: 1 USD

Quality High-Precision 2.5D/3D X-ray Inspection for BGA & PCBA Defect Detection UNICOMP AX8300 for sale

Brand Name : UNICOMP

Model Number : AX8300

Certification : CE, FDA

Place of Origin : China

MOQ : 1Set

Price : can negotiate

Payment Terms : T/T,L/C

Supply Ability : 30 sets per month

Delivery Time : 30 days

Packaging Details : Wooden Case, Waterproof, Anti-collision

Name : X-ray Inspection Machine

Tube Voltage : 110KV

Size : 1215(L)x1325(W)x1700(H)mm

Power Consumption : 900W

Contact Now

High-Precision 2.5D/3D X-ray Inspection for BGA & PCBA Defect Detection UNICOMP AX8300

The AX-8300 is designed to address PCBA high resolution inspection requirements. The AX-8300 is the FIRST machine in the industry to utilize a special 110kV micro focus x-ray source! This is the Perfect “In Between” design that offers a solution when 90kV is not enough energy and 130kV is too much.
Using a state of the art FPD (Flat Panel Display) detection, the AX-8300 can generate extreme high magnification/resolution images that are similar to the highest resolution 90kV x-ray tubes can produce. Additionally, the AX-8300 offers 360 degree table rotation providing unlimited image views.

Model	AX8300
Max kV/type	110 kV/Sealed
Max.Electron beam power	25W(Option8W)
Min.Resolution	5μm
Geometric magnification	48.8X
Imaging system(Option)	Flat Panel Detector
Monitors	27" HD 4K display
Cabinet dimensions	1215x1325x1700mm
Weight	1350kg
Radiation safety²	<1μSv/hr(<0.1mR/hr)at the cabinet surface 5cm
Control	Keyboard/Mouse/Joystick
Automated inspection	Standard
Primary applications	Chip inspection/Electronic components/Auto parts.etc
1.Focal spot size is a variable.Please consult the unicomp 2.X-ray Safety Commitment:All x-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems.The FDA-CDRH standard for cabinet x-ray systems states that radiation emissions will not exceed.5millirem/hr.2"from any external surface.Our machines are typically 15times less emission.

Major applications:
PCBA BGA/IC LED Aliminum die casting Battery connector inspecting

1. Semiconductor package

2. Electronic connector module.

3. Original Package

4. Aerospace components

5. Medical appliances

6. Automation components

Training

Training will include:

Basic Radiation Safety.
X-Ray system control functions.
X-Ray image processing software training.
Basic X-ray signature analysis training.
Hands-on sample analysis using your typical samples.
Training certificates for all attendees.

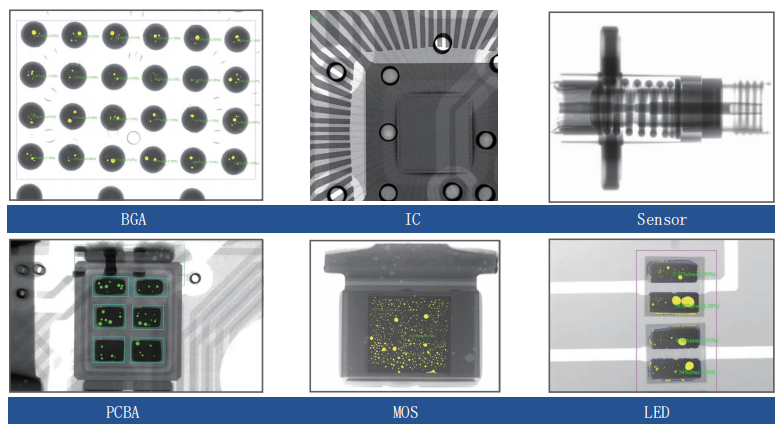

Inspection Images:

High-Precision 2.5D/3D X-ray Inspection for BGA & PCBA Defect Detection UNICOMP AX8300
